A static gauge that shows a measured value inside a known range, with an optional label and readout.

A meter reads out a fixed quantity, not progress toward a goal. Use it for things like disk usage, a battery level, or a score, where the value sits somewhere between a known min and max. Set value and the bar fills to that fraction; anything past the ends is clamped. The meter is static and non-interactive.

import 'package:fossui/fossui.dart';

FossMeter(
  value: 64,
);

Range

The default range is 0 to 100. Pass min and max to measure on any scale, and the readout follows the raw value.

FossMeter(
  value: 4.2,
  min: 0,
  max: 5,
  label: 'Rating',
);

Label and readout

label sits at the start of the row above the track. showValue toggles the readout at the end; it is on by default. Use formatValue to render the value as a percentage, a fraction, or anything else.

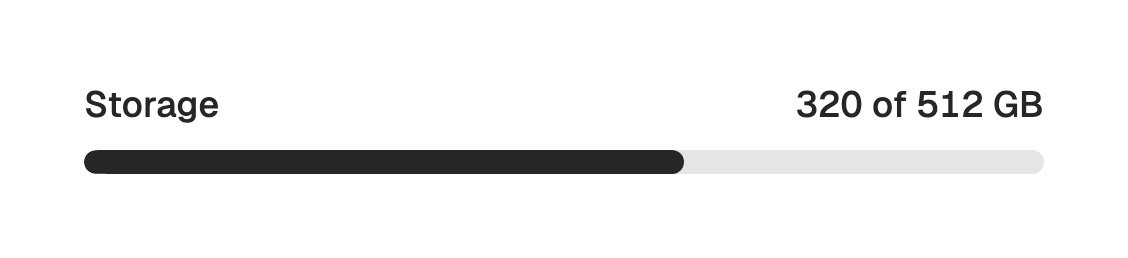

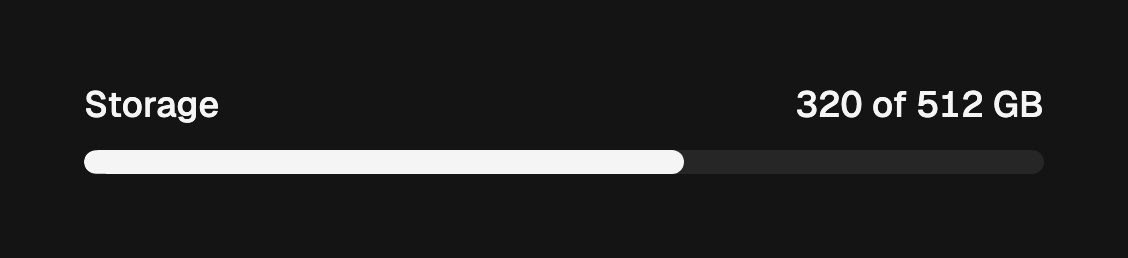

FossMeter(
  value: 320,
  max: 512,
  label: 'Storage',
  formatValue: (value, min, max) => '${value.round()} of ${max.round()} GB',
);

Accessibility name

When there is no visible label, pass semanticsLabel to name the meter for assistive technology. The value is always announced from the range.

FossMeter(
  value: 82,
  semanticsLabel: 'Battery level',
);

One-off styling

Global retheming is the first choice, but a single meter can override its resolved colors and text with a FossMeterStyle. Every field is optional and falls back to the theme.

FossMeter(
  value: 92,
  style: const FossMeterStyle(
    fillColor: Color(0xFFDC2626),
  ),
);

API

FossMeter

Prop	Type	Default	Description
`value`	`num`	required	Measured value, clamped to the range.
`min`	`num`	`0`	Low end of the range.
`max`	`num`	`100`	High end of the range.
`label`	`String?`	`null`	Text at the start of the row above the track.
`showValue`	`bool`	`true`	Whether the readout appears at the end of the row.
`formatValue`	`String Function(num value, num min, num max)?`	`null`	Formats the readout; defaults to the rounded value.
`semanticsLabel`	`String?`	`null`	Accessibility name when there is no visible label.
`style`	`FossMeterStyle?`	`null`	Per-instance overrides on the theme.

FossMeterStyle

Field	Type	Default	Description
`trackColor`	`Color?`	`null`	Fill of the unfilled track.
`fillColor`	`Color?`	`null`	Fill of the leading gauge band.
`labelStyle`	`TextStyle?`	`null`	Style of the label, merged over the token default.
`valueStyle`	`TextStyle?`	`null`	Style of the readout, merged over the token default.

Live demo

Open the interactive gallery to try every range and state with live knobs.
